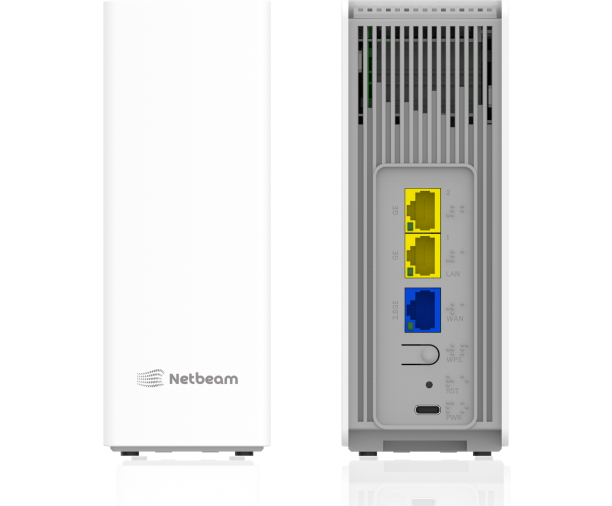

Eco7100 Mini — Dual-band Wi-Fi 7 Router / Mesh Extender
Overview
One SKU, three roles: standalone router, mesh node for Eco7100 mini, or mesh extender for Eco7100 simplifies inventory.
Wi‑Fi 7 BE3600 (4096‑QAM) for responsive, cost‑optimised coverage in smaller homes, apartments and MDUs.
Operator‑grade management with TR‑069/TR‑369 (USP) and MQTT for low‑touch turn‑ups and fleet visibility.
MLO + EasyMesh to stabilise links and extend footprint without rewiring (wired or wireless backhaul).
Energy‑savvy with wireless eco modes and intelligent sleep to curb idle power.
Accessible labelling (Braille) to reduce install errors and support calls.
Key Chips
CPU mini
Broadcom BCM6764 Flash
128 MB DDR
512 MB
Interface
WAN Ports
1 × 2.5 G Ethernet LAN Ports
2 × 1 G Ethernet
Dual-band Wi-Fi 7
2.4 GHz
2×2 (up to 688 Mbps) 5 GHz
2×2 (up to 2882 Mbps) Combined Speed
≈ 3570 Mbps Auto channel selection
TBC
≈ 3570 Mbps Security
WPA2 / WPA3
Wi-Fi Features
MLO (Multi-Link Operation) MU-MIMO / OFDMA / TWT Interference detection & channel optimisation
Operating Modes
Router
DHCP / PPPoE / Static / Bridge EasyMesh Extender
wired / wireless
Management
Protocols
TR069, TR-369 and MQTT protocols Setup wizard
LAN & DHCP configuration Auto country-code detection End User
Web GUI or iOS/Android App. Service Provider Vision remote, AI enabled, network management, Braille port descriptions
Security & QoS
Firewall
Firewall with device isolation DDoS/ARP/DDNS-hijack protection Ad blocking/abnormal traffic & device auto-isolation QoS
QoS rules by traffic Parental Controls
Access Time Limits, Device/Profile Pause, Speed limit, URL Filtering Guest & Home Network
Easy Password Sharing, pop-up page login, subnet isolation
System & Updates
Features
Guest portal with subnet isolation FOTA with power-loss recovery Packet capture / event logging / timed reboot LED brightness & timer control Intelligent sleep mode
Coverage
Range
≈ 120 m² (typical indoor)
LED Indicators
Status Indicators
1 × System LED (red/orange/green, with diffuser) Ethernet LED
Power
Power Input
USB-C 12 V⎓1 A (≈ 20 W) Operating Temp
0 °C – 50 °C Humidity
10 – 90 % (non-condensing) Storage Temp
–30 °C – 60 °C
Physical
Dimensions
Height 163.5 mm, Width 110 mm, Depth 60 mm Weight
TBC
Packaging
Gift Box
Recycled packaging & cable ties, Eco7100 Mini, USB-C PD PSU, ethernet cable, QR code for quick connect
