Eco7100 - Tri Band

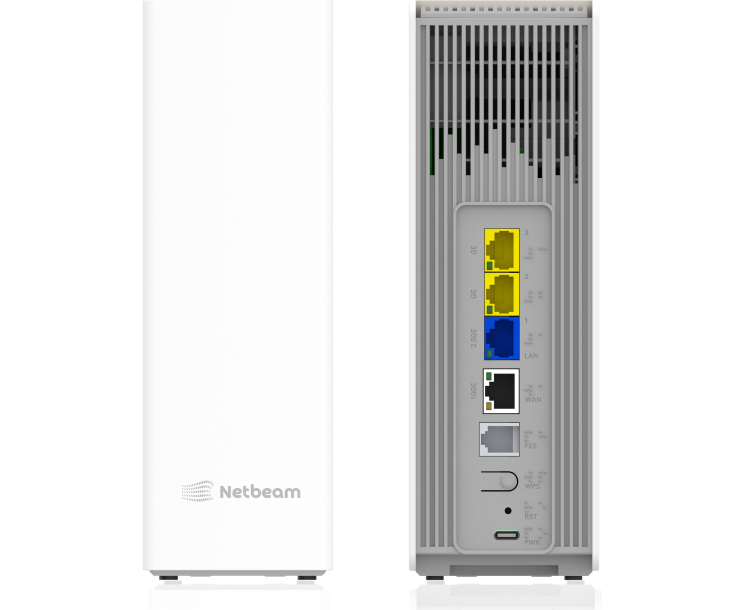

Eco7100 — Tri-band Wi-Fi 7 Router

Overview

10G-ready WAN + multi‑gig LAN to unlock higher-tier packageswithout CPE swaps. Wi‑Fi 7 performance up to 9.6 Gbps (320 MHz + 4096‑QAM) for low‑latency, high‑density homes and SMBs. Operationally simple: TR‑069/TR‑369 (USP) and MQTT for remote lifecycle management and app/cloud workflows. Smarter RF with Multi‑Link Operation (MLO) and EasyMesh for steadier links and simpler whole‑home expansion. Lower OPEX with energy‑saving algorithms that cut idle RF power while preserving performance. Accessible by design with Braille interface labeling to reduce install friction and support calls.

Key Chips

CPU Broadcom BCM6764 Flash 128 MB DDR 512 MB

Interface

WAN Ports 1 × 2.5 G Ethernet LAN Ports 2 × 1 G Ethernet

Tri-band Wi-Fi 7

2.4 GHz 3×3 (up to 1032 Mbps) 5 GHz 2×2 (up to 2882 Mbps) 6 GHz 2×2 (up to 5765 Mbps) 320 MHz; 4096-QAM Auto channel selection TBC Security WPA2 / WPA3

Wi-Fi Features

MLO, MU-MIMO, OFDMA, TWT, interference detection & channel optimisation, Auto channel selection

Operating Modes

Router DHCP / PPPoE / Static / Bridge EasyMesh Extender EasyMesh (wired/wireless), mesh topology view, seamless roaming (802.11k/v/r)

Management

Protocols TR-069, TR-369 and MQTT Setup Wizard LAN/DHCP configuration; auto country-code End User Web GUI or iOS/Android App. Service Provider Vision remote. AI-enabled network management, Braille port descriptions

Services & WAN

IPv4/IPv6 DHCP/PPPoE/Static/Bridge; IPTV options; 4G/5G hotspot failover; MAC clone

Security & QoS

Firewall Firewall (graded), device isolation, DDoS/ARP/DDNS hijack protection, ad blocking; abnormal traffic/device detection with auto isolation QoS QoS rules by traffic Parental Controls Access Time Limits, Device/Profile Pause, Speed limit, URL Filtering Guest & Home Network Easy Password Sharing, pop-up page login, subnet isolation VPN L2TP, PPTP, IPsec, WireGuard, OpenVPN client

System & Updates

Features FOTA with power loss recovery; packet capture; event logging/alerts; scheduled reboot; LED brightness/timer

Coverage

Range ≈ 140 m² typical indoor

LED Indicators

Status Indicators 1× system (red/orange/green) plus Ethernet port LEDs; states for startup/reset/upgrade/mesh.

Power

Power Input USB-C 12 V⎓2.5 A (≈ 30 W) Operating Temp 0 °C – 50 °C Humidity 10 – 90 % (non-condensing) Storage Temp –30 °C – 60 °C Smart Power Management Auto RF power reduction during idle periods

Physical

Dimensions Height 213.5 mm, Width 150 mm, Depth 70 mm Weight TBC

Packaging

Gift Box Recycled packaging & cable ties, Eco7100, USB-C PD PSU, ethernet cable, QR code for quick connect
